Discover Logica W and all our range of aqueous parts washing systems

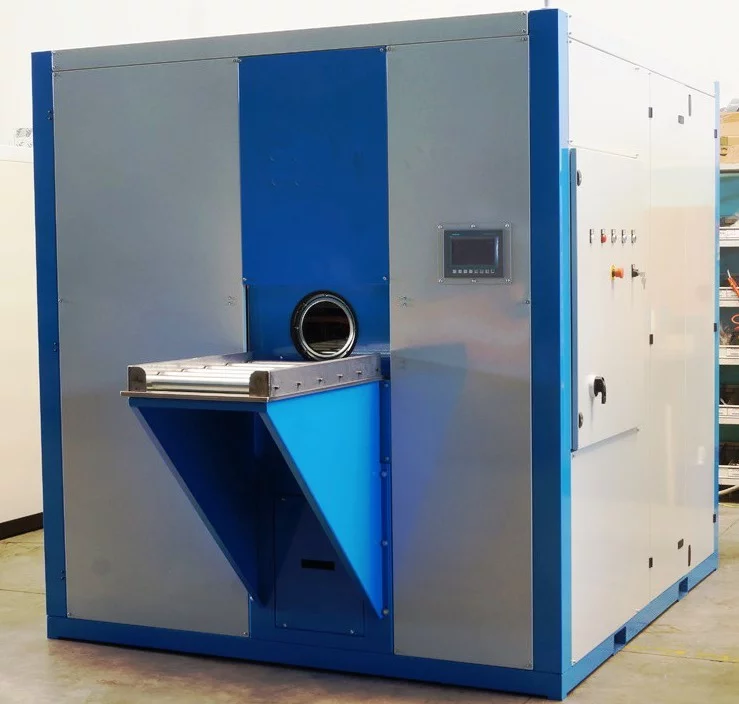

Firbimatic LOGICA W is an industrial aqueous parts washer that are used to clean turned parts, machine castings, pressings and extrusions and many other engineering components. Our range of systems includes intermediate and cell wash machines plus high precision final wash machines.

Firbimatic Metal Cleaning Division are true experts in the process of aqueous parts washing, supported by our laboratory for wash trials and developing the targeted detergents to ensure the perfect finish in challenging applications.

Our machines are both highly efficient and robust, thriving in tough industrial environments.

Firbimatic industrial aqueous parts washers serves many of the leading names in engineering, in sectors such as aerospace, automotive, defence, medical, motorsport and general engineering.

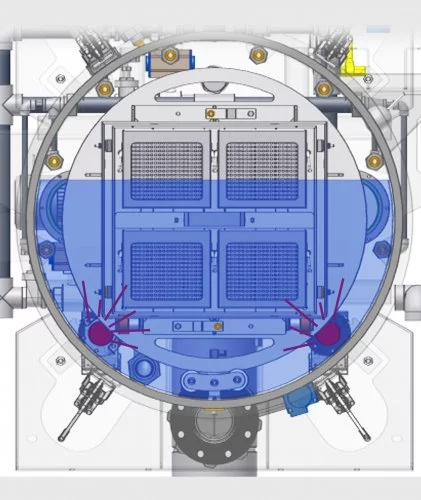

Firbimatic Logica W series apply very high volumes of water through open rotating nozzles to produce a heavy spray/flood washing process that penetrates and cleans masses of small parts in baskets or complex parts in specialised fixtures.

Full rotation of the workload exposes all the parts surfaces, machined holes, recesses and galleries to the process solutions and provides effective draining and drying.

Parts with simple geometries can also be gently oscillated from side to side.

Ultrasonics can be specified to assist the cleaning of small holes and to remove fine particulates and adhered contaminants such as polishing compounds, lapping paste and casting sand from the component surfaces.

While many components can be cleaned in simple baskets, complex parts may require a tailored fixture providing dedicated jetting of specific areas such as oil, fuel and gas way, galleries and deep blind machined holes which ensure fast, effective and consistent cleaning.

The process concludes with high velocity hot air and vacuum drying to ensure rapid removal of water from the cleaned components.

INDUSTRIAL AQUEOUS PARTS WASHERS: features

The top 10 features of industrial aqueous parts washers:

• Solvent free washing cycle
• Low energy consumptions
• Flexible operating programs
• Full operator safety
• Equipment fully in stainless steel
• Know-how on detergents and their applications
• Extraordinary cleanliness results on precision parts
• Customized models
• Professional documentation
• Efficient and professional technical assistance service

All range of industrial parts washing machines

The aqueous washing systems range consists of:

HYDROKINETIC MACHINE (MOD. LOGICA BLUE)

The Masterwash Logica Blue is the ideal solution for cleaning of turned parts and precision components for aerospace, medical and military industry.

Provided with front loading door, with automatic vertical opening, parts are rotated or rocked  in baskets on their horizontal axis.

Great accuracy in cleanliness also in presence of complex surfaces, thanks the combined action of biodegradable detergents and spraying with rotating jet ramps.

Possibility of full immersion and Ultrasonics.

Read more >>

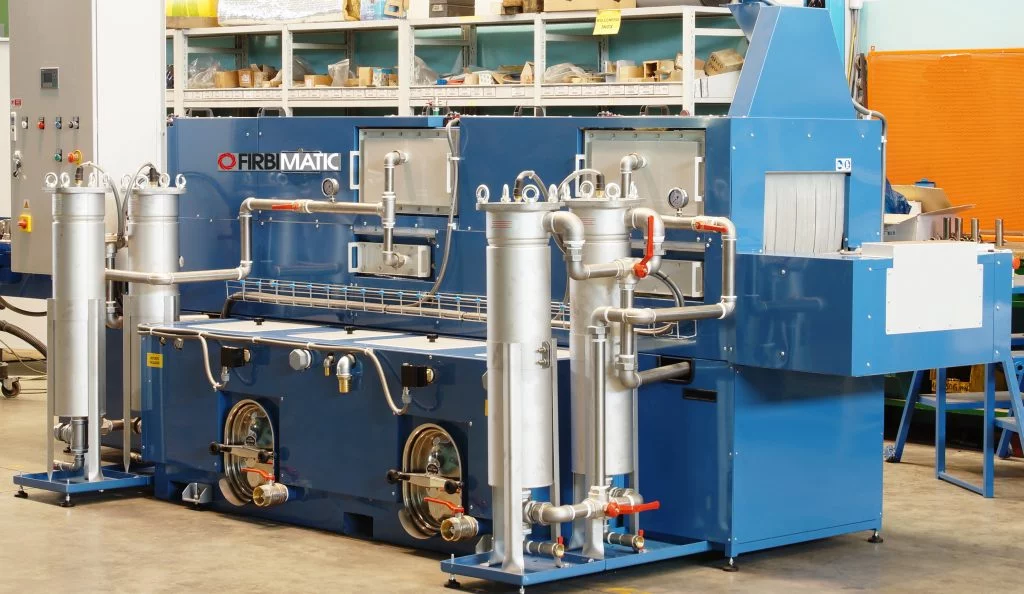

THROUGHFEED CONVEYORISED WASHERS (MOD. CT)

Continuous Washing Tunnels Masterwash CT, are available in single or multiple section also with return conveyor or washing sequence by carrousel, for washing great quantities of components.

Versions with in-line dedicated jetted fixtures for complex shape components can be integrated in the standard supplying.

Read more >>

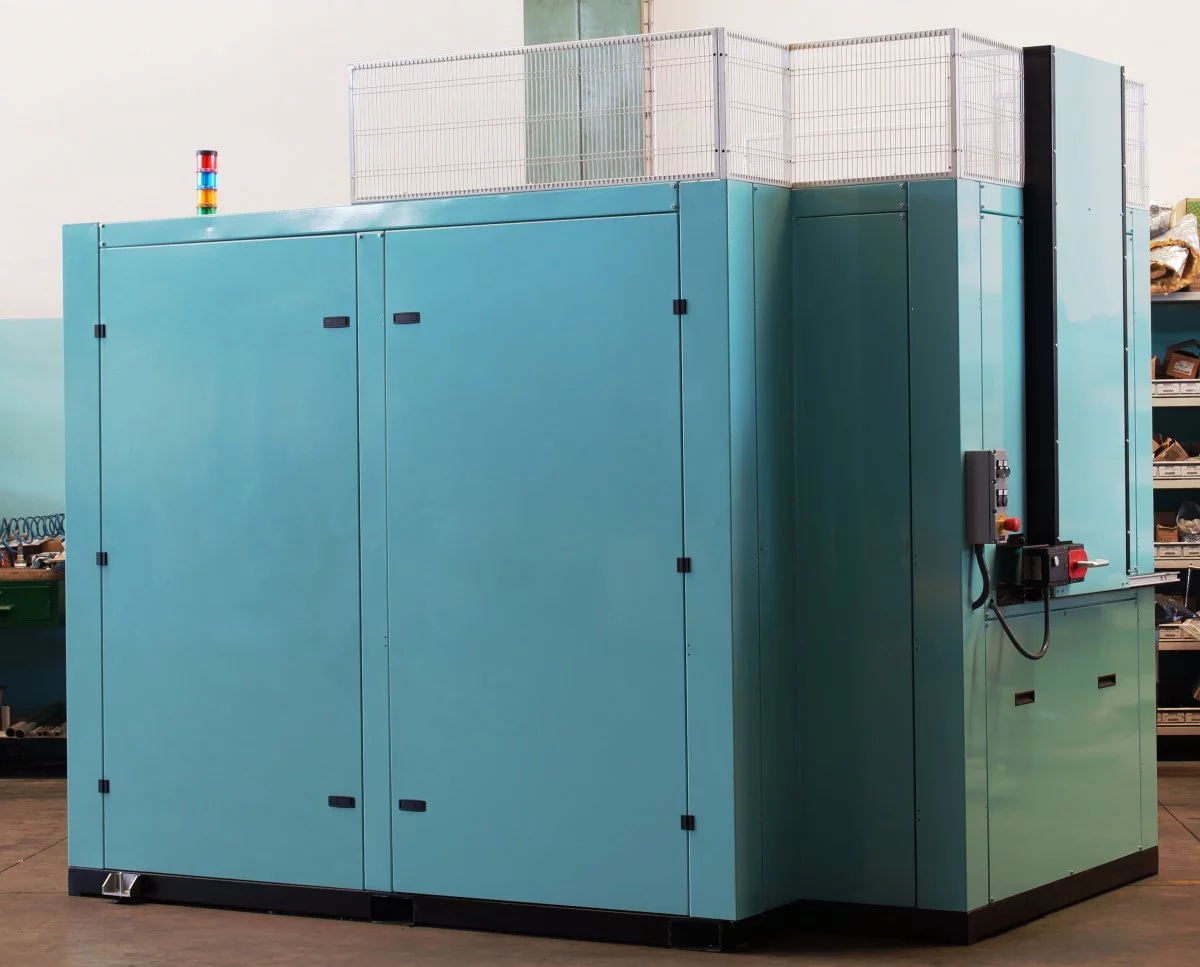

CAROUSEL WASHERS (MOD. TR)

System with turntable-stepping (of each step can have an adjustable duration) suitable for positioned parts washing or for washing baskets with small or large parts.

The Carousel Cleaning System combine washing action with high pressure sprays and rotation of the parts; then do the rinsing, extraction of vapors and eventual drying by recirculation with forced hot air.

Read more >>

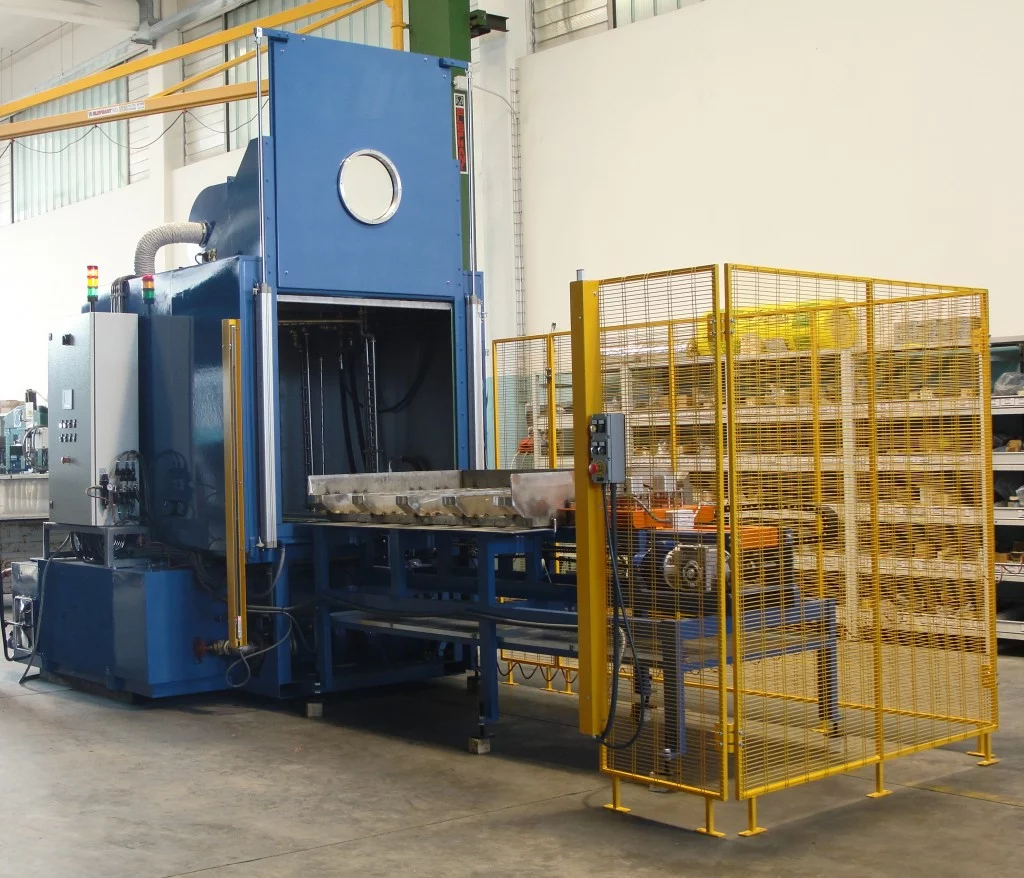

CABIN WASHERS FRONT LOADING (MOD. CM)

Cabin Washers with rotary basket are indicated for bigger and heavier parts. Provided with vertical opening door, its modular design makes the customization easy, including a second rinsing base tank. Washing is done by high performing hot spraying-jets fed by an axial pump made in stainless steel.

Programming by a versatile micro-computer.

Read more >>

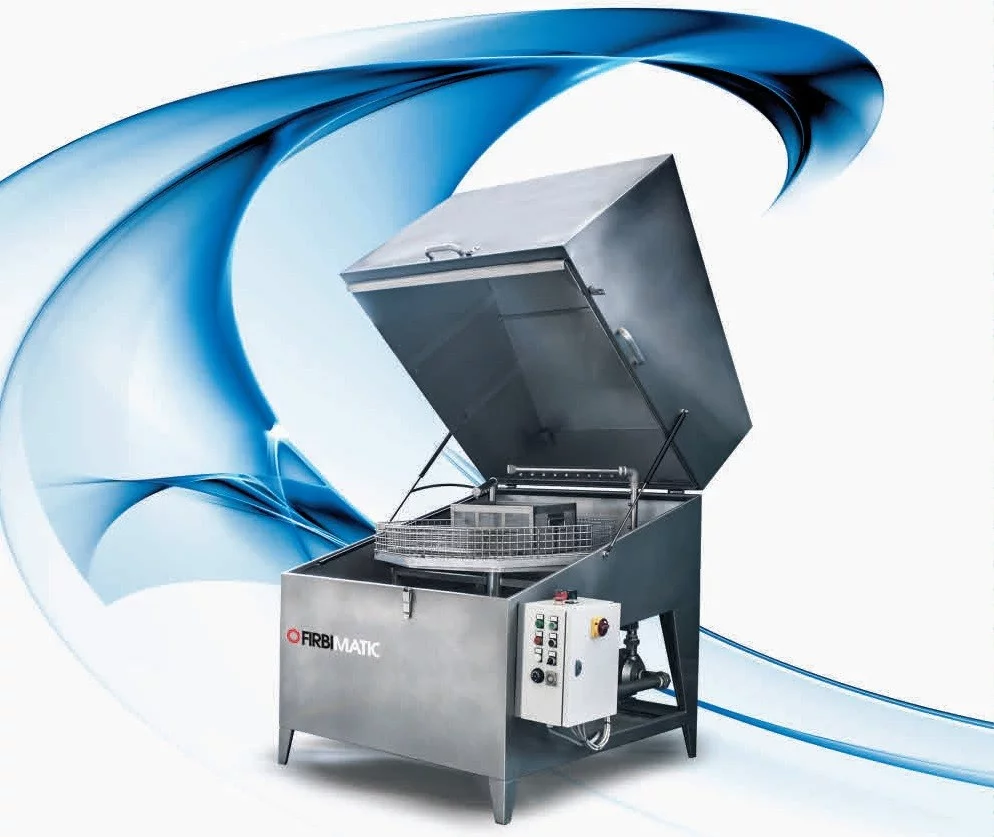

CABIN WASHERS TOP LOADING (MOD. SM)

Cabin Parts Washer mod. Masterwash SM is suitable for small and medium parts for cleaning/ degreasing/ protection.

The aqueous parts washer have:

.Cold and hot spray wash with rotary basket-holder
.Entirely manufactured in stainless steel
.The base tank is separate from the cleaning chamber (low steam emission)
.Rotary basket, jet spraying ramp for an accurate dirt removal

Read more >>
